Baofeng CH-6DMR?is IC Certified radio, IC Certification #: 25196-DM1706

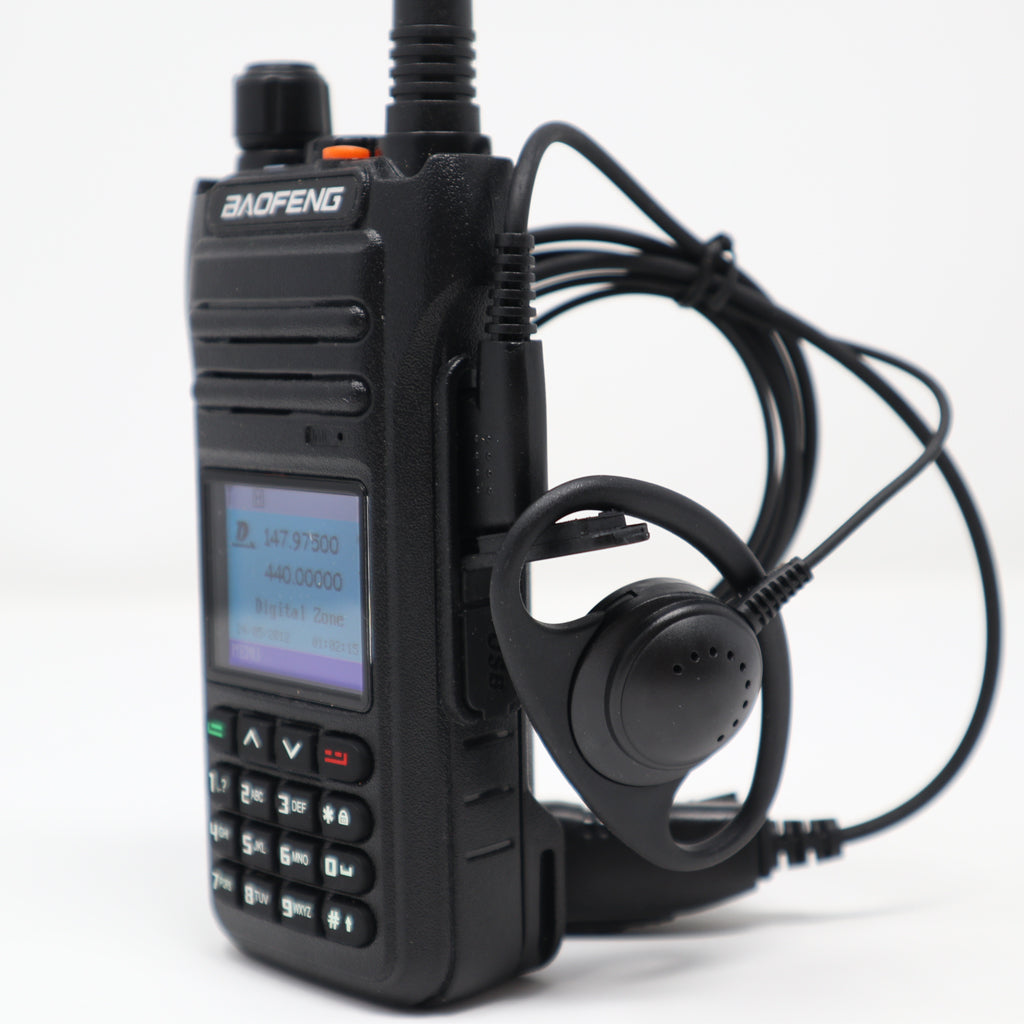

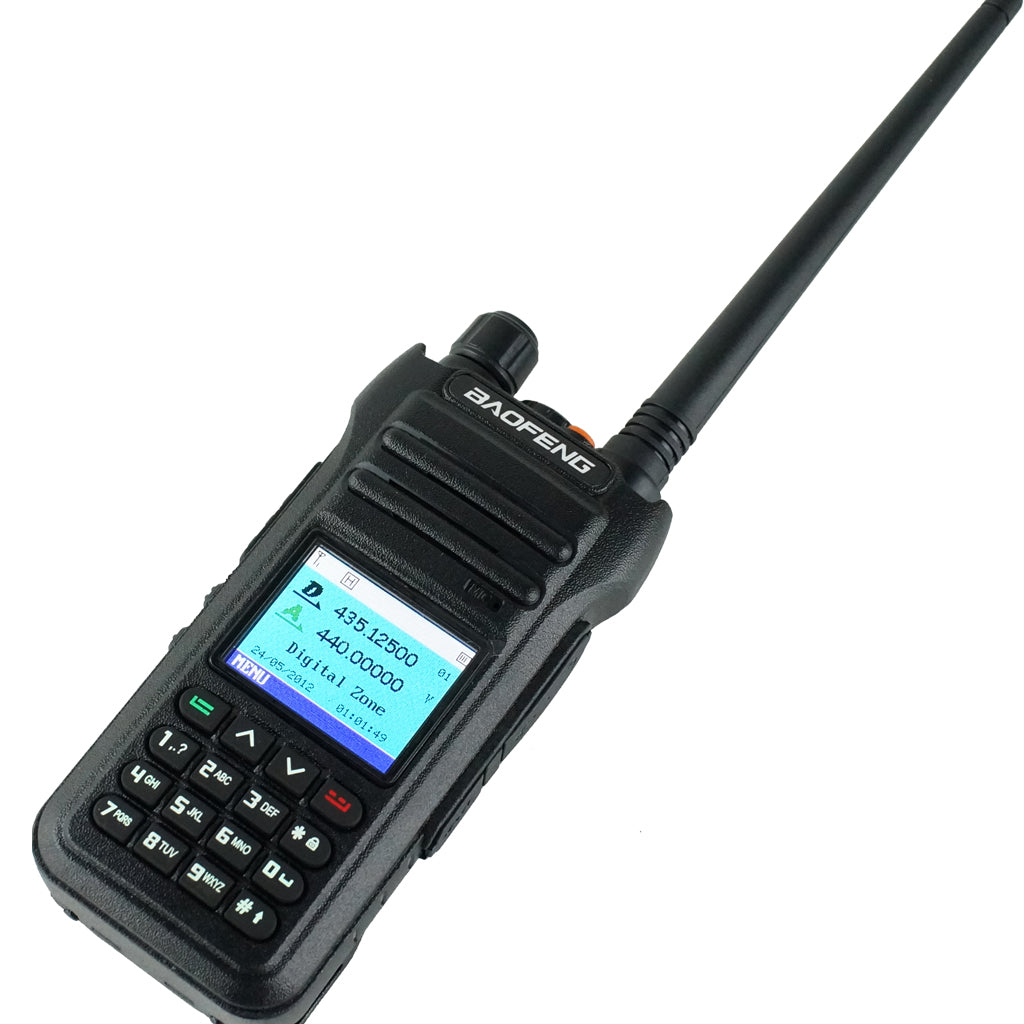

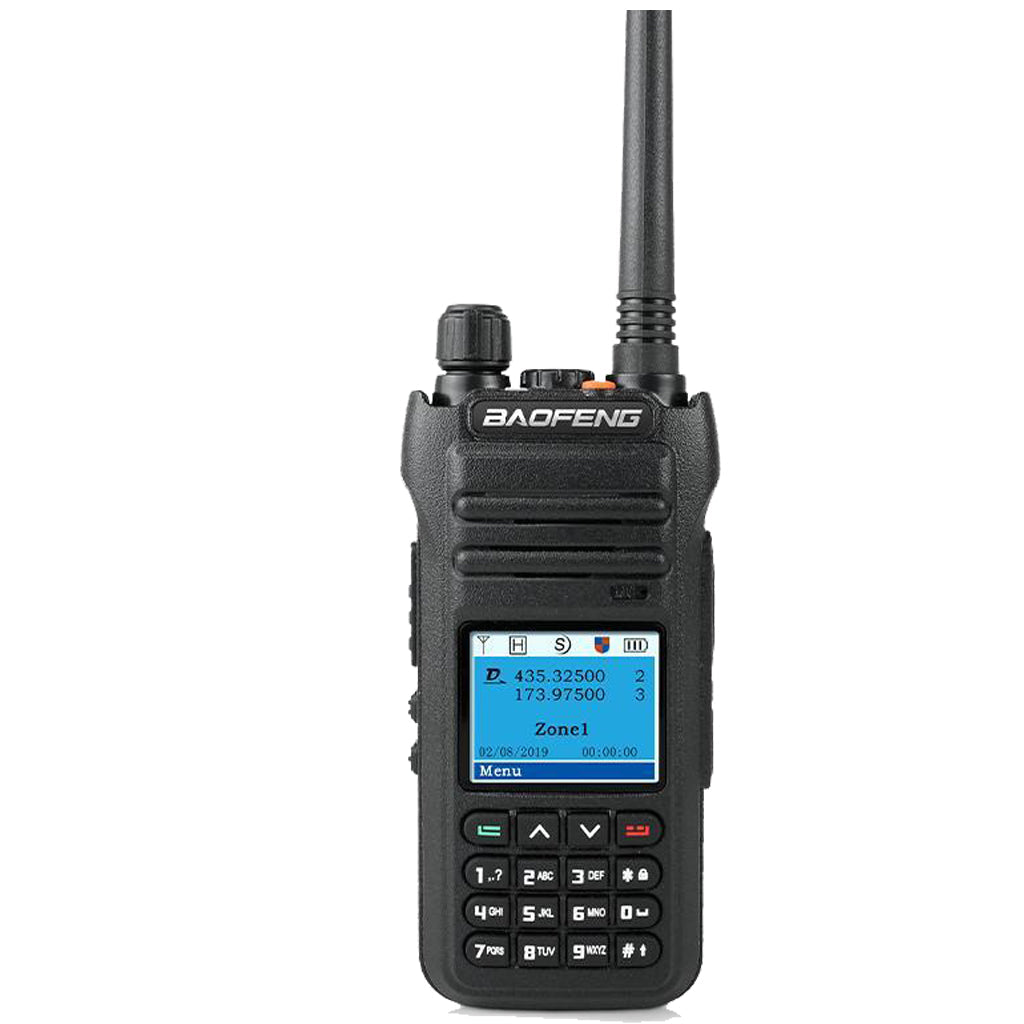

Baofeng CH-6DMR is one of the most versatile dual-band DMR radios available. Designed for amateur usage with its large, bright color TFT display. The?CH-6DMR can store 4,000 Channels and 120,000 Contacts (VIA CSV files upload.)
The frequency range is 144-148MHz and 430-450 MHz.
DMR Tier 1 & 2 Compatible, MOTOTRBO Compatible
It is compatible with the MOTO TRBO series radios using standard, as well as other makes and models of DMR-supported radios. It is also compatible with any two-way radio operating on the supported VHF/UHF frequencies for easy migration to digital technology. Dual Slot DMR Radio (Tier 1 and Tier 2 Compliant)
Longer battery life and transmission distance
2200mAh battery support 250 hours standby time and more than 12 hours use life are enough for your standard work shift: ideal for outdoor adventure activities of HAMs
The CH-6DMR Allows for Front Panel Programmable Channels, but for advanced features, software programming is recommended (Programming Cable Included), Requires Windows PC (free software available at Support & Download Section), Programmable Side Keys, and Upgradeable Firmware
SPECIFICATION:
- Frequency Range: VHF 144-148 (Rx/Tx) UHF 430-450 (Rx/Tx)
- Channel Capacity: 4000 Channels
- Channel Spacing: 25KHz (Wideband) 12.5KHz (Narrow-Band)
- Phase-locked Step: 5KHz, 6.25KHz
- Frequency Stability:?¡À2.5ppm
- Operating Voltage: 7.4v DC?¡À20%/£¨2200mAh£©
- Operating Temperature: -30¡æ ~ +60¡æ
?TRANSMISSION:
- Output Power: High: 5W Low: 1W
- Output Consumption: Analog?¡Ü1.6A Digital?¡Ü 0.9A
- Consumption:?¡Ü0.18A
- FM Modulation (Wide/Narrow): 16K¡éF3E@25KHz / 141K¡éF3E@20KHz /?11K¡éF3E@12.5KHz
- 4FSK Digital Modulation: 12.5KHz for data 7K60FXD / 12.5KHz
- For data and voice: 7K60FXE
- Modulation Distortion: <5%
- Signal-to-Noise (Wide/Narrow):?¡Ý45dB@25KHz,??¡Ý40dB@12.5KHz
- Adjacent Channel Power:?¡Ü-65dB@25KHz? ¡Ü60dB@12.5KHz
- Audio Response: +1 ~-3dB
- Antenna Port Sporous: 90KHz - 1GHz:?¡Ü-36dBm / 1GHz -12.5GHz:?¡Ü-30dBm
- Digital Protocol: ETSI-TS102 361-1,-2,-3
- Vocoder Type: AMBE+2?
RECEPTION:
- Analog Receive Sensitivity: -122dBm (12dB SINAD)
- Digital Receive Sensitivity: -120dBm (BER¡Ü5%)
- Audio Power: 1W
- Audio Distortion: <10%
- Audio Response: +1 ~ -3dB
- Signal Imitation:?¡Ý70dB
- Intermediation (Wide/Narrow):?¡Ý62dB /?¡Ý58dB
- Adjacent Channel Selectivity (Wide/Narrow):?¡Ý65dB /?¡Ý60dB
- Receive Current:?¡Ü380mA
- PM Noise:?¡Ý45dB@25KHz /?¡Ý40dB@12.5KHz

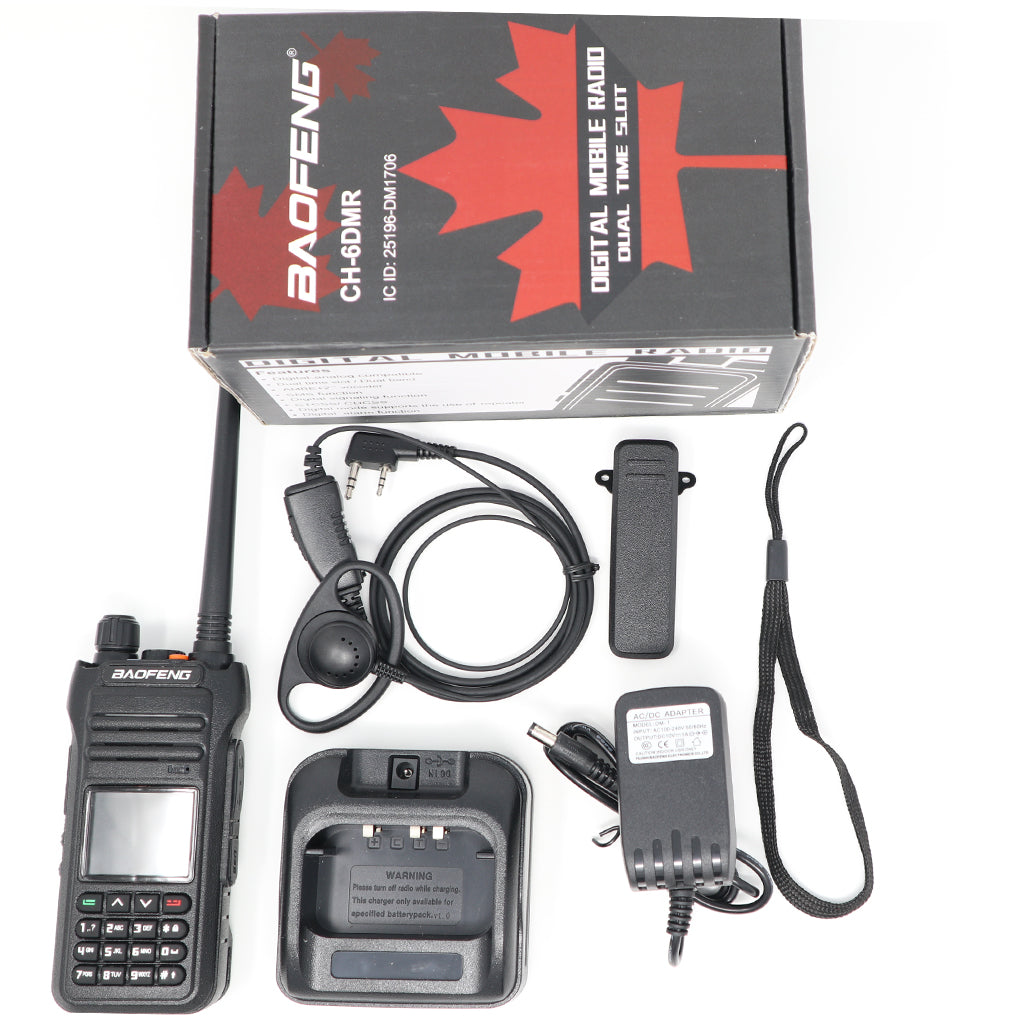

What's in the Box:
- Baofeng CH-6DMR,
- 2200mAh standard battery
- Belt Clips
- Programming Cable
- Charger Base
- Earpiece Kit
- Dual Band Antenna
- Wrist Strap
- User's Manual
